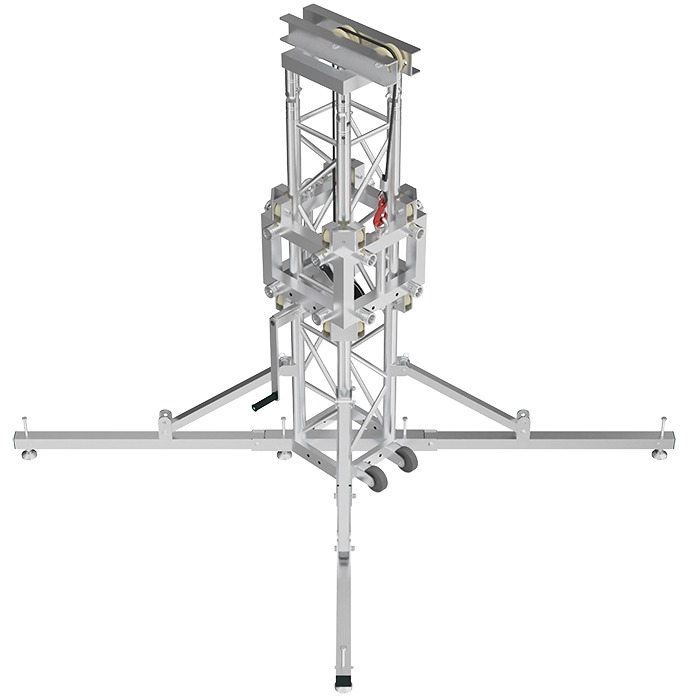

TAF’s new and improved Tower 05 is a complete, all-in-one, light-duty tower system for small roof systems, elevation of truss grids, and more.
Transport, setup, and use are made easy. Users can roll out to a location, unfold the outriggers, and attach the HT34 truss on top. With HT34’s quicklock connection system, buildup is extremely quick and easy. Versatility is also ensured, with a welded sleeve block that allows for four-way connection of truss segments to suit a wide range of applications.
Tower 05 features a maximum lifting height of 6.5 m (21.3 ft) and a maximum loading of 500 kg (1,100 lbs).
Other features include:
- Steel, side-to-side rotating feet for improved levelling on a wide range of surfaces.
- Adjustable leg braces for increased stability.
- A modified sleeve block allows for smoother travel.
- Eight holes (two on each side of the sleeve block) for convenient mounting of accessories.
- Chain hoist connection point on the top section.Tower 05 comes with all components for immediate use:
- HT34 truss segments (also compatible with FT34 and TT34 truss series’).
- Aluminum baseplate with outriggers.
- Sleeve block.
- Top section.
- Wheels for trouble-free transport and handling.
- Hand winch with steel rope.
- Connection kit for truss segments and sleeve block.
