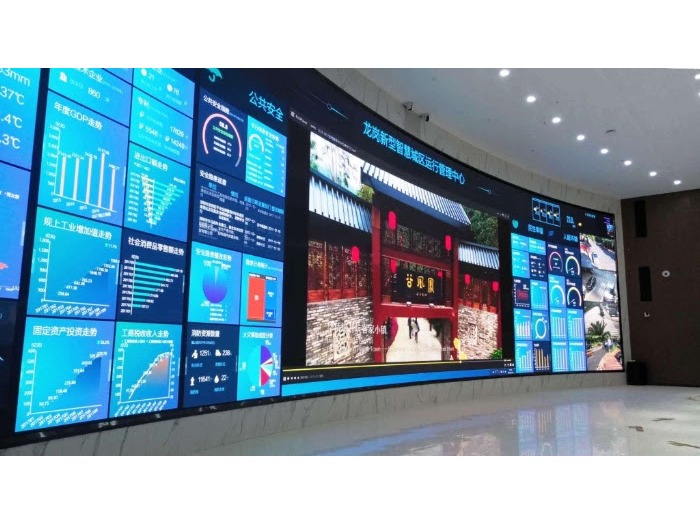

Absen, the award-winning LED panels manufacturer, was responsible for the installation of this Smart City display system, the world’s largest curved NPP LED screen. With a record-breaking 103 million pixels over 166.9 sqm surface, this 1.27mm pixel pitch LED video wall boasts the highest pixel density ever achieved in an installation. The screen was installed at the end of last year, and features Absen’s latest CR 1.2 LED series dedicated to control room environments.
As one of the most important sub-projects in Shenzhen’s Smart City project, the LOC required a display that would be big enough to deliver critical content with the highest image quality, while providing comfortable viewing experience and stability. Absen’s CR 1.2 is geared to receive 181 display signals and deal with the sheer amount of data to display them on up to 105 windows at 720p (40 windows at 1080p and 10 at 4K resolution).
“To engineer the world’s largest high resolution screen in 85 days from production to installation is no mean feat,” said Absen sales director, Zhang Yongfeng, “We had to overcome the difficulties of installing the screen while the center was still being built and therefore full of dust, but the combination of our sophisticated technology and skilled engineers meant we were able to deliver.”
To deliver a project of this magnitude, Absen tailored a perfect solution with CR1.2, involving different industry-leading technologies. To ensure robust stability, each panel is equipped with two power banks and two receiving cards so that the power and signal can be switched to the backup set whenever needed, ensuring continuous operation in such a critical decision-making environment.
Designed with air circulation in mind, each LED module uses a non-plastic bottom case. The panel has convection holes for quick internal heat dissipation. Absen’s TotalPlug Wireless panel design strengthens product stability and performance.
Measuring 25.6m (L) x 6.5m (H), the 166.9sqm screen is made of 798 panels, and designed with a curve of 37.1 metres in radius – another challenge that the Absen team had to solve in order to remove any bezel between the panels. This was made possible thanks to Absen’s PreciseAlign technology, which features 16 screw-holes on the panels for fine tuning and two directions on the Z axis for precise seam adjustments. In addition to the physical fine tuning of seams, an additional software option offers one-click seam brightness adjustment to create a truly bezel-free screen.
Henan Goldroc Information Technology Co. Ltd was amongst the companies involved in the LOC project, providing a software solution capable of collecting and centralising the data before displaying it on the Absen screen. “We originally faced a dilemma when looking for the best technology for this project. LCD and DLP would show gaps of at least one pixel pitch and up to 3.5mm which is not acceptable in such a demanding control room environment,” commented Mr. Wu Yanbin, the Henan Goldroc project manager.
“When we tested Absen’s CR1.2 LED display, we were thrilled to see each panel fit seamlessly to the next, leaving no black bezel. The power and signal backup were another advantage for display stability. Technically, the screen will never go black, and that’s what we wanted. This is the reason why we chose Absen,” he said.
In addition to a curved design, content quality was of paramount importance. The Absen CR series uses the best components and electronics, offering colours at 110% (NTSC broadcast-level), as well as 255 brightness adjustment levels, which can be set manually or automatically, providing comfort to operators who often work in front of the screen for an extended period of time every day.
Absen’s CR1.2 is also an energy-efficient solution, with an average power consumption of 153 W/sqm, 25%-35% lower than that of normal 55” LCD products. Furthermore, the use of “lead-free” technology in the Printed Circuit Board Assembly (PCBA) soldering process is not only eco-friendly, but also ensures higher resistance to oxidation and higher product stability.
“The screen that Absen made is stunning. We were equally impressed by the Absen’s team working spirit. The site was still a work in progress when the screen was engineered, but the Absen team overcame all the difficulties and put all their heart in the project,” concluded Mr. Liu Jianwei, the section chief in charge.
