Innlights Displaysolutions is a leading provider of high-quality LED displays and LED system solutions. With the self-developed InnVision video controllers (SCL and SCXL) and the Innlights Remote Control App (Innlights RCA), the company from Wuppertal has established powerful hardware components and user-friendly control software for LED displays of all sizes.

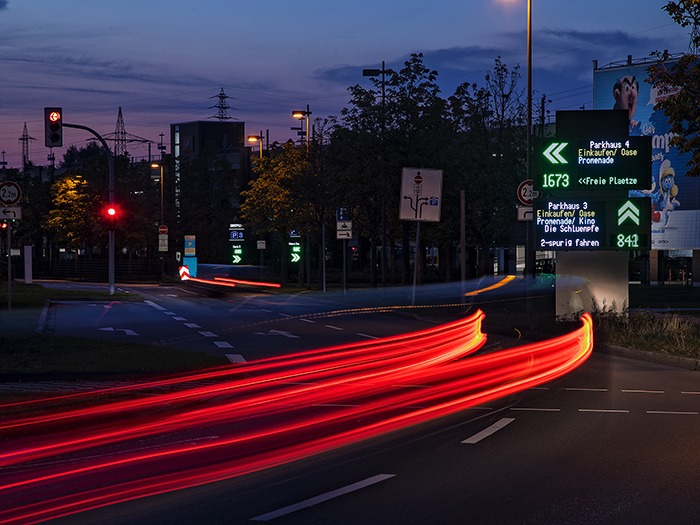

In addition, Innlights designs and develops customized solutions and recently implemented and installed a new LED parking guidance system for Centro Oberhausen. After two months of successful test operation, the twelve pylons with the LED display boards have been in use since July. The grafic representation is based on location-dependent text, remaining parking space and arrow matrix representation. While the text LED displays have a pixel pitch of 10 mm, the striking directional arrows of the guidance system are displayed using LED modules with a pixel pitch of 16 mm.
The maximum brightness of the LED modules is 5,500 cd/sqm. For use in public spaces, each pylon is equipped with its own sensor, so that a sufficiently bright, but glare-free brightness is guaranteed at all times. The parking guidance system is EMC-certified and all relevant values are well below the applicable limit values.
In addition, each pylon is connected via LTE for control. An essential part of the project is the software connection to the CUR car park management software. For this purpose, the LED controllers were integrated on site using interface programming. Each pylon has its own IP address, which is also used for remote maintenance from the service desk. Any messages from the system are transmitted via a web-based service.
In addition, all parameters of the pylons can be checked at any time from the service desk via the cloud service. Markus Remark, the managing director of Centro Oberhausen, is very satisfied with the new LED parking guidance system: “We are very pleased that the approach to a free parking space is now very clear and easy. Our visitors and customers can find their parking space quickly and easily at any time.”
