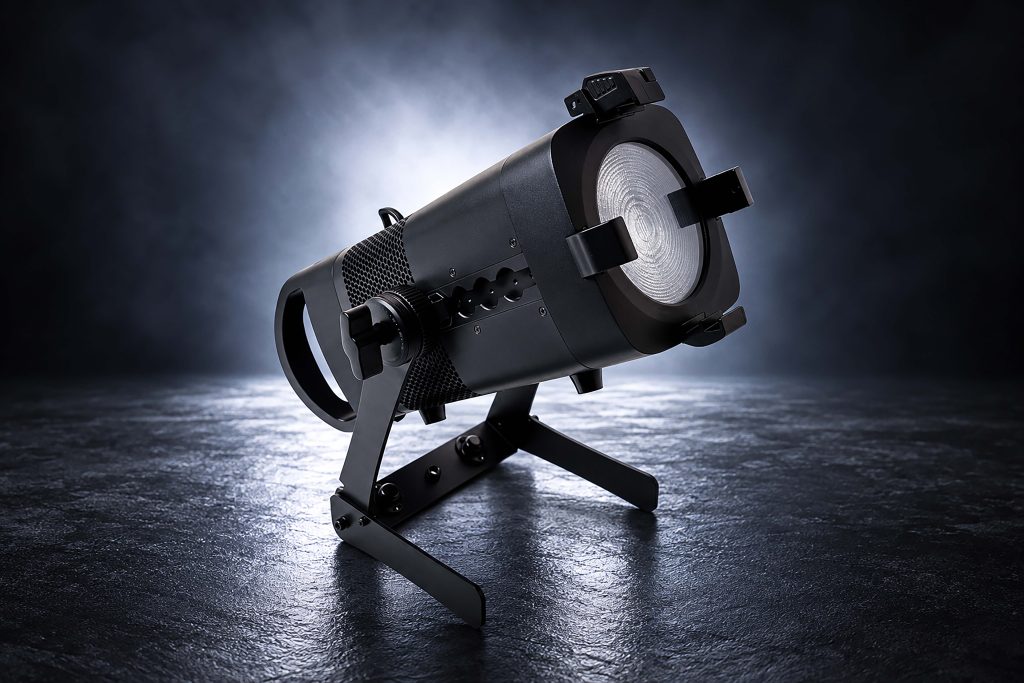

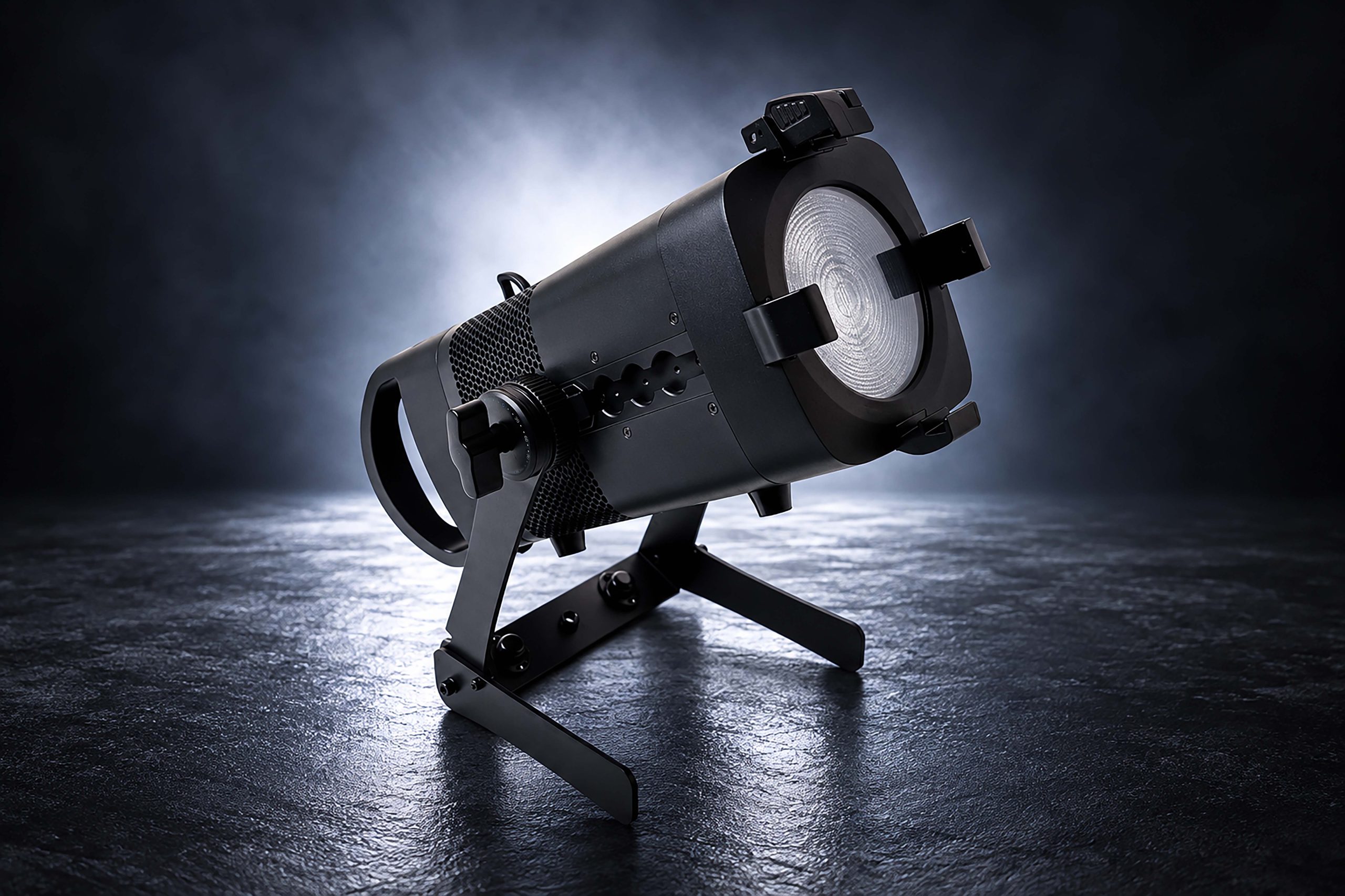

With the XOOP Digital FRSNL M, HOF is launching the next generation of Fresnel fixtures, opening up entirely new possibilities for light shaping in this product category.
Thanks to the innovative FROSTYX SMARTGLASS technology, the horizontal and vertical dimensions of the beam can, for the first time, be controlled digitally and independently of each other.
This allows a classic round beam to be transformed, for example, into a wide horizontal beam, a narrow vertical beam, or a light shape individually adapted to the specific application.
A digital zoom enables independent adjustment along the X and Y axes directly via DMX, RDM, or the intuitive rotary controls on the fixture.
Especially in applications where light needs to be precisely adapted to spatial conditions, this provides a significant increase in flexibility.
The XOOP Digital FRSNL M combines the proven characteristics of a classic Fresnel fixture with the possibilities of modern digital zoom technology, creating new creative freedom for lighting designers, stage planners, and production professionals.
The XOOP Digital FRSNL M was specifically developed for professional theatre and film productions.
Thanks to its high level of flexibility, however, it is equally suitable for exhibitions and corporate events, show productions, live entertainment, and rental applications.
At the heart of the system is a powerful 200W 5-in-1 RGBMA LED. The RGBMA colour mixing system, combining Red, Green, Blue, Mint and Amber, provides excellent colour rendering across the entire colour spectrum and enables natural white tones for a wide range of lighting situations.
In addition to digital light shaping, intuitive operation was a key focus during development.
The XOOP Digital FRSNL M can be conveniently configured directly on the fixture using two rotary push encoders on the rear panel and a full-colour digital display.
All relevant information and settings, including digital zoom, colour temperatures and colour macros, are clearly displayed and can be adjusted directly on the fixture.
Features include up to 255 LEE colour filter presets, adjustable colour temperatures from 1,800 to 20,000 Kelvin, stepless dimming, and full control of the digital zoom.
In addition, the fixture can be seamlessly integrated into existing lighting control systems via DMX and RDM.
Technical features include 16-bit dimming, various dimming curves, strobe effects, integrated automatic programmes, and convenient functions such as an automatically rotating display that adjusts when the fixture position is changed.
With an adjustable PWM frequency from 600 to 20,000 Hertz, the XOOP Digital FRSNL M is also optimised for demanding camera applications. Particularly in film, TV and broadcast productions, this helps ensure flicker-free images.
The XOOP Digital FRSNL M is a highly professional lighting tool in a compact form factor. Functions that were previously mainly reserved for larger moving lights with framing systems are now available for the first time in a Fresnel fixture of this class.
From exhibitions and corporate events to theatre, film and concert stages, the XOOP Digital FRSNL M opens up new possibilities for precise and flexible light shaping.
