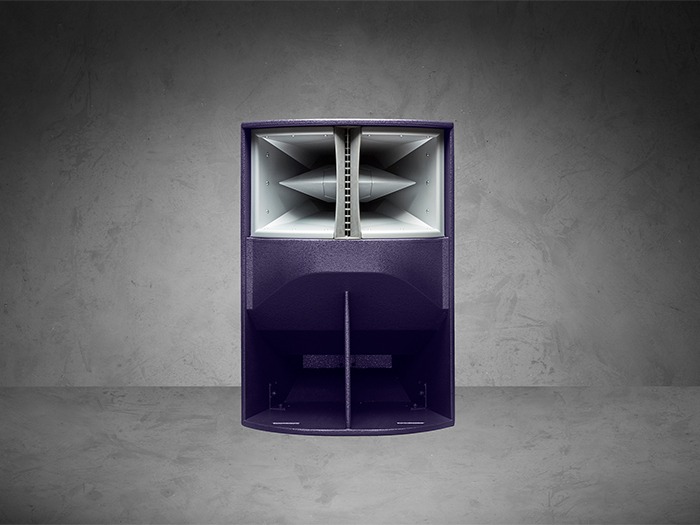

Funktion-One launches wide dispersion loudspeaker innovation Evo X

Funktion-One introduces the Evo X, a significant development of the full range, completely horn-loaded loudspeaker. Utilising the latest Funktion-One waveguide technology, it provides 90° horizontal dispersion and high SPL.

Evo X’s advanced driver technology delivers outstanding clarity, resolution and detail across 90° horizontal dispersion, making it an excellent choice for live venues, small clubs and theatres. It is capable of high SPL from a relatively compact speaker and can be deployed as a one per side or four-point system. While Evo X’s horizontal dispersion delivers even coverage across a wide area, its focused 15° vertical dispersion ensures the sound is concentrated on the audience, minimising reflections and room excitement. The result is clear and involving sound.

Funktion-One founder Tony Andrews commented: “We’ve had a 90° full range loudspeaker on our radar for a while now, but it was the development of Vero VX that paved the way for Evo X. It’s an impressive piece of loudspeaker technology, which can be deployed in all kinds of environments. As part of its field testing, we’ve had a pair in Esher Theatre. I’ve heard a 16-piece big band through that system; the level of detail, separation and the stereo image were remarkable considering the complexity of the signal.”

Esher Theatre’s Charlie Swift added: “For us, the key point is the live experience you can’t get anywhere else. The Funktion-One sound leaves a lasting impression with the audience. I’ve never heard a system that presents every single instrument so clearly.”

Featuring the same isophase diffraction high frequency waveguide technology as Vero VX, Evo X is designed for small to medium live events and installations, finding its optimal audience area at around 10m by 10m. Operating across 50Hz-18kHz, it combines very well with Funktion-One F Series and BR Range bass speakers for increased low frequency energy. The wide bandwidth 8” mid-range extends to 5kHz, minimising stress on the 1” high frequency driver, while the 15” mid bass comfortably handles 50Hz-280Hz.

Andrews explained: “The 1” driver is actually inside the Axhead. The challenge there was to keep the vertical dispersion narrow but still go the full height of the mid-range device. That’s where the isophase diffraction waveguide comes in.”

Evo X has been meticulously designed and engineered for high SPL and high efficiency, minimising energy consumption and environmental impact. “It’s all natural,” says Andrews. “There’s no onboard EQ required. I’m really pleased with it. It feels like a really good place to have got to after all these years.”

Evo X weighs 47kg, measures 604mm wide, 859mm high and 540 mm deep, and is available with a custom wheel board which cradles the loudspeaker’s curved front. It is available now in a range of colours and finishes through Funktion-One’s global network of distributors and dealers.

funktion-one.com
